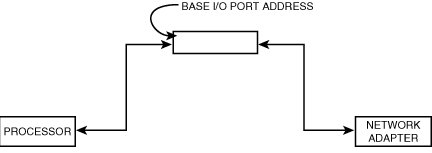

Figure 10.4
The base I/O port address defines a memory address through which data flows to the adapter.
